Testing C++ Standard Library Containers

A simple program that runs a series of tests on C++ standard containers. The tests are not designed to be rigorous but rather simple experimentation of the relative performance of the standard C++ containers.

Tests

Benchmark tests the following operations on the below containers with element types varying in size and features.

Operations

• Push Back
• Push Front
• Linear Search
• Random Insert w/ Linear Search
• Random Erase
• Random Remove + Erase
• Destruction
• Sort
• Random Sorted Insert

Containers

• std::list
• std::deque
• std::vector
• Preallocated std::vector

Element Types

• Trivial [Sized Types]
  • 8 bytes
  • 64 bytes
  • 128 bytes
  • 1024 bytes
  • 4096 bytes
• Non Trivial and Movable
• Non Trivial, Movable and noexcept
• Non Trivial and Non Movable
• Non Trivial and Expensive to Copy and Move [32 bytes]

Results

Some of the most interesting results from the benchmark. It showed that for smaller element sizes, operations typically attested to perform better with a linked list (std::list); like random insertion, actually performed better with a contiguous array (std::vector). It was only once the element size got really big did the linked-list perform significantly better. This most likely can be attributed to how modern CPUs cache data based on temporal and spatial locality which std::vector is able to "leverage" due to the fact its elements are close together making subsequent lookup faster due to higher likelihood of already being cached as opposed to the detached nature of std::list nodes. However, these benchmarks just ran on my machine and might only be indicative of the particular CPU my device had.

Note: I apologize for the inconsistent colour convention of each plot.

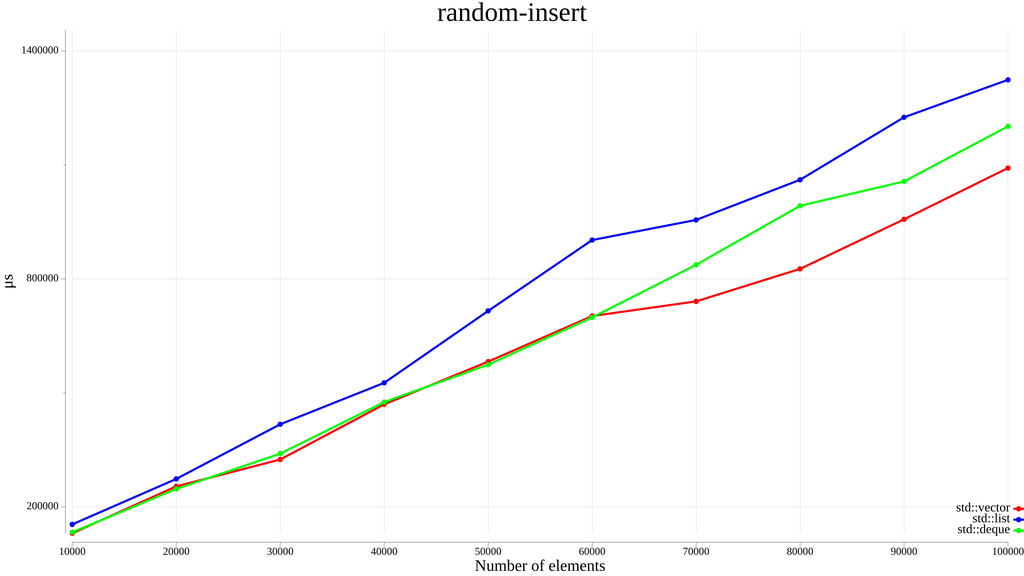

Trivial 8 byte type comparison

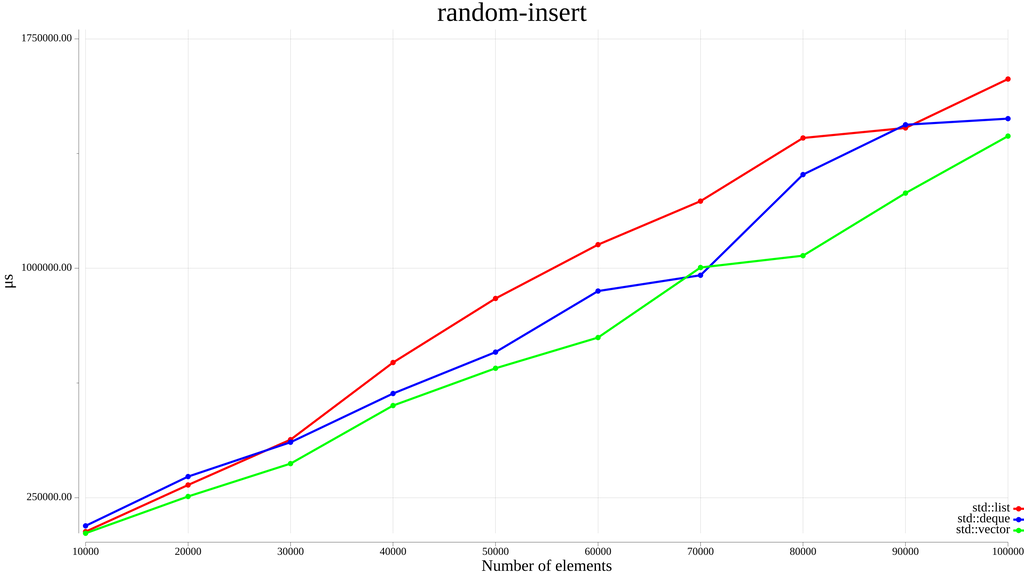

Trivial 64 byte type comparison

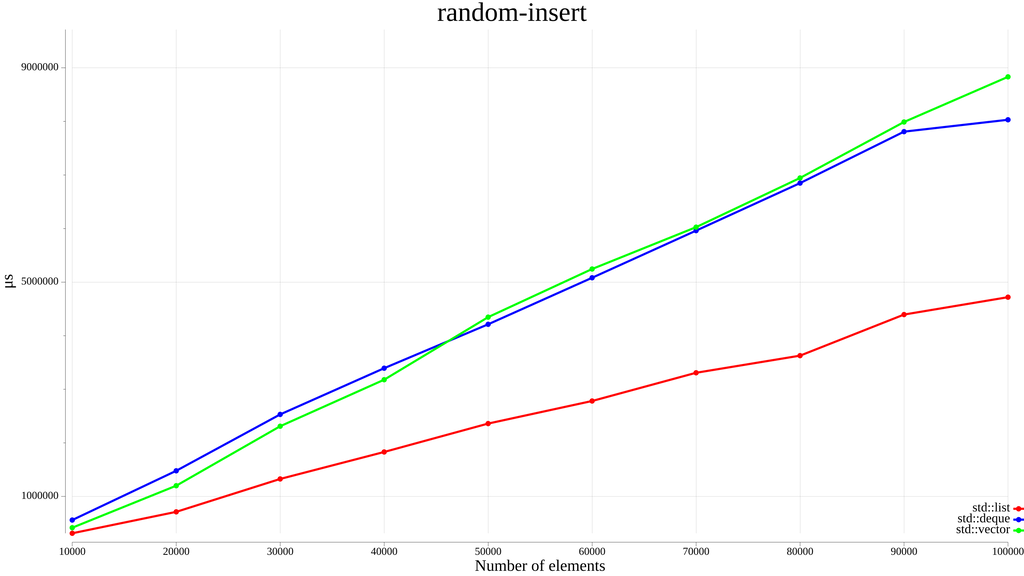

Trivial 1024 byte type comparison

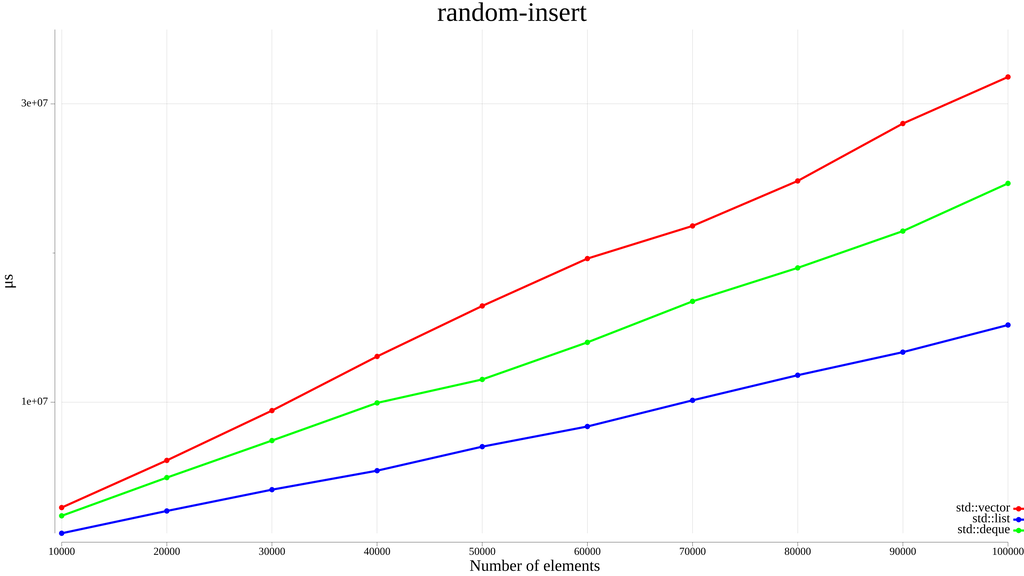

Trivial 4096 byte type comparison

Full directory of plots available with source to browse.

Credit

Inspired by C++ benchmark - std::vector VS std::list VS std::deque - Baptiste Wicht
